Cylindrical & Prismatic Lithium Cells

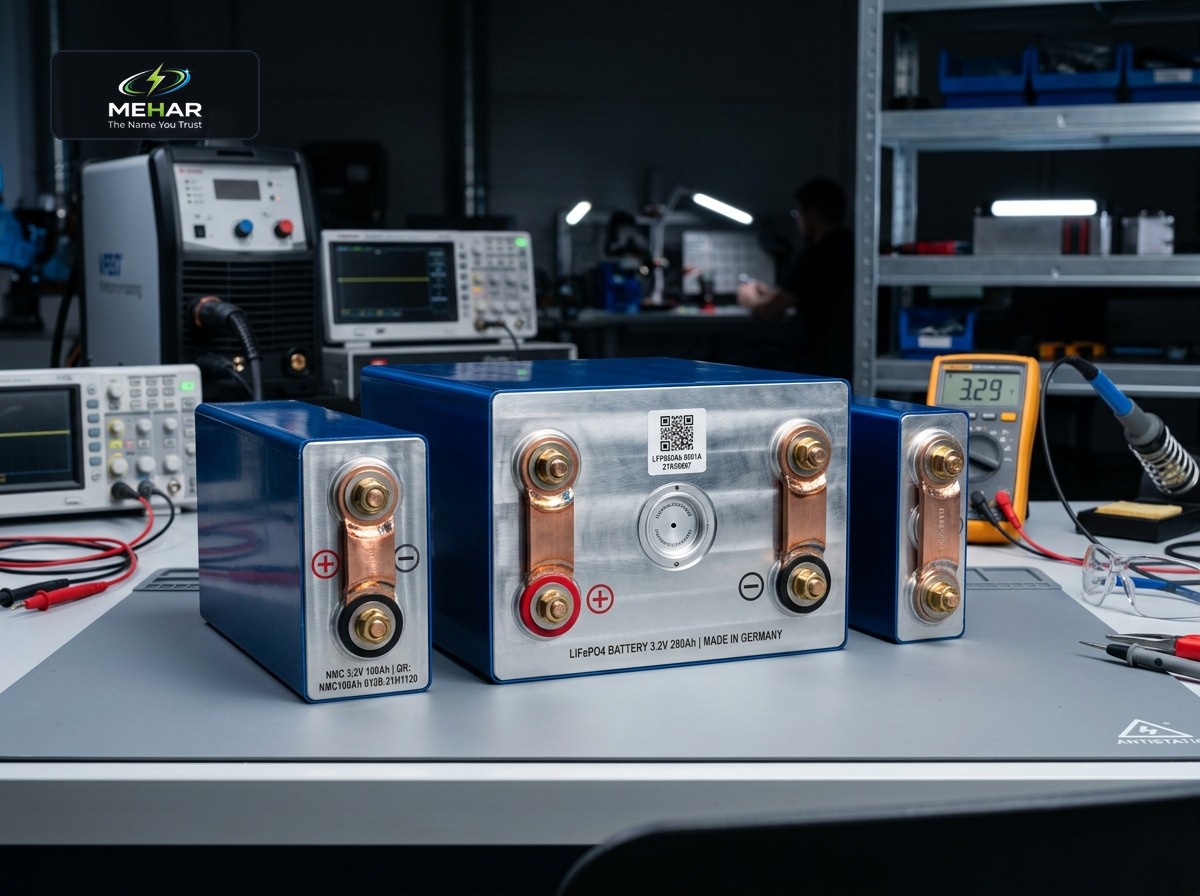

Direct factory supply of Grade-A Cylindrical (18650, 21700, 32700) and Large Laser Prismatic (3.2V 100Ah - 314Ah) cells for B2B integrators
100% factory-tested, QR-code traceable Grade-A lithium cells with matched internal resistance (IR within ±1.5%) and verified capacity. Providing cylindrical formats (18650, 21700, 32700) for portable equipment and e-cycles, alongside heavy laser-welded prismatic cells (3.2V 100Ah, 280Ah, 314Ah) for modular pack assemblers.
Recommended Target Applications:
B2B Battery Pack Assemblers & OEMsElectric Cycles & Light MobilityPortable Power Equipment & Testing LabsHigh-Capacity Modular ESS Projects
Production Line Models
Showing all verified commercial packsSelect Model for Technical Datasheet
NMCMHR-CELL-18650-260018650 3.7V 2600mAh NMC Cylindrical Cell
Industrial standard 18650 high-density NMC cylindrical lithium-ion cell for modular battery packs, electric 2-wheelers, and portable equipment.
Voltage3.7V
Capacity2,600
IP RatingStandard
Verified Product DatasheetModel: MHR-CELL-18650-2600Chemistry: NMC (Nickel Manganese Cobalt)
18650 3.7V 2600mAh NMC Cylindrical Cell
Industrial standard 18650 high-density NMC cylindrical lithium-ion cell for modular battery packs, electric 2-wheelers, and portable equipment.
Minimum Order Quantity (MOQ)100 units (Batch procurement)
Technical Matrix
Engineering Datasheet & Parameter Validation
| Engineering Parameter | Specification Value | Standard / Status |
|---|---|---|
| Product Model Code | MHR-CELL-18650-2600 | OEM Standard |
| Nominal Voltage Range | 3.7V (2.75V - 4.2V Operating) | Verified |
| Rated Capacity (C/5) | 2,600 mAh (2.6 Ah) | Verified |
| Energy Content | 9.62 Wh | Standard Rating |
| Cell Chemistry & Format | NMC (Nickel Manganese Cobalt) | Grade-A Prismatic / Cylindrical |
| Cycle Life @ 80% DoD | 800+ cycles @ 80% DOD | Long-Life Standard |
| Continuous Discharge Rate | 7.8A (3C Continuous) | High-Drain Grade |
| Operating Temperature Range | -20°C to 60°C (Discharge) / 0°C to 45°C (Charge) | Indian Ambient Validated |
| BMS Communication Interface | Individual Cell / Welded Module Assembly | Active Smart BMS |
| Ingress Protection (IP Rating) | Standard Steel Canister with Heat-Shrink Sleeve | Submersion Proof |
| Dimensions & Form Factor | 18.3 mm (Dia) × 65.0 mm (H) | Engineered Enclosure |
| Total Pack Weight | ~46 g | Verified |
| Standard B2B Warranty | Contact MEHAR sales for bulk cell batch terms | Commercial Grade |
Extended Application Parameters
Nominal Voltage3.7 V
Rated Capacity2600 mAh
Nominal Energy9.62 Wh
Max Continuous Discharge7.8 A (3C)
Cathode ChemistryNMC (Nickel Manganese Cobalt)
Internal AC Impedance≤ 35 mΩ (@ 1kHz)
Form Factor18650 Cylindrical
Dimensions (Dia × H)18.3 × 65.0 mm
Weight46 g
Cycle Life800+ cycles @ 80% DOD
